AB72 / AB84

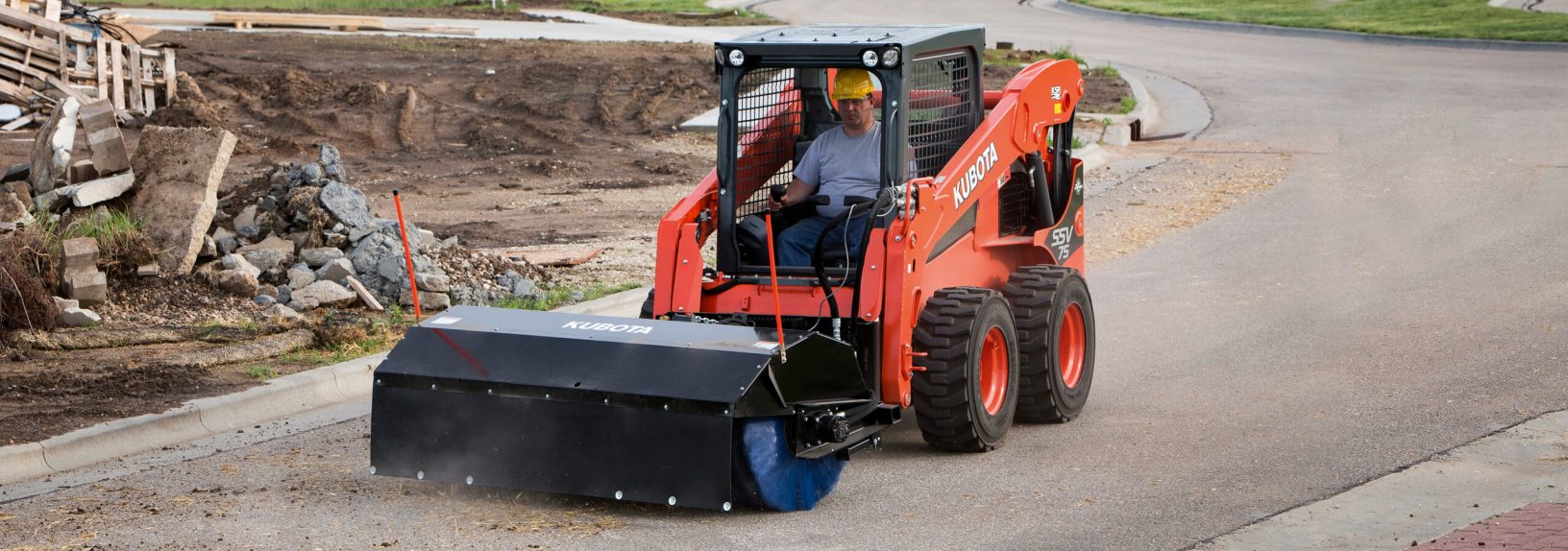

The AB72 & AB84 Angle Brooms are ideal for construction site cleanup, road maintenance, light snow removal on paved surfaces, and cart path maintenance. Options include poly, wire or blended poly brush with hydraulic or manual angle adjusters.
Specifications
| Name | AB72 | AB84 |
|---|---|---|
| Max. Weight | 387.4 kg | 421.8 kg |
| Width | 2.07 m | 2.37 m |
| Height | 83.8 cm | 83.8 cm |
| Name | AB72 | AB84 |
|---|---|---|
| No. of Broom Wafers | 36 | 42 |
| Sweeping Width | 1.83 m | 2.13 m |
| Sweeping Width – at 30° Angle | 1.65 m | 1.93 m |
| Max. Angle | 30 deg | 30 deg |
| Brush Diameter | 81.3 cm | 81.3 cm |
| Quick Change Broom Core | Yes | Yes |
| Standard Bristle Type | Poly | Poly |
| Spring Loaded Float Control | Yes | Yes |
| Wafers – Convoluted | N/A | 40 |
| Name | AB72 | AB84 |
|---|---|---|
| Min. Hydraulic Flow | 45 L/min | 45 L/min |
| Max. Hydraulic Pressue | 3500 psi | 3500 psi |
